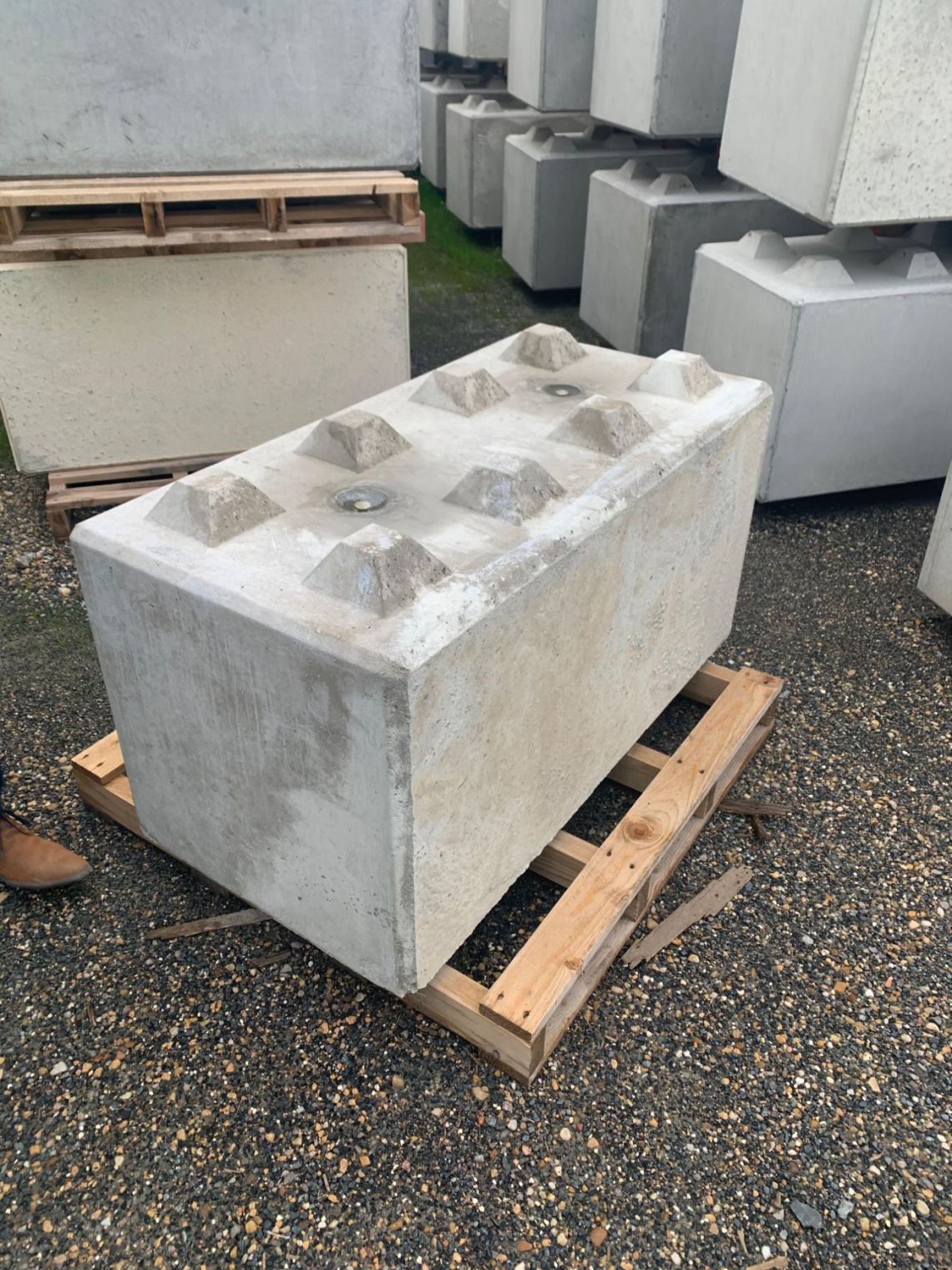

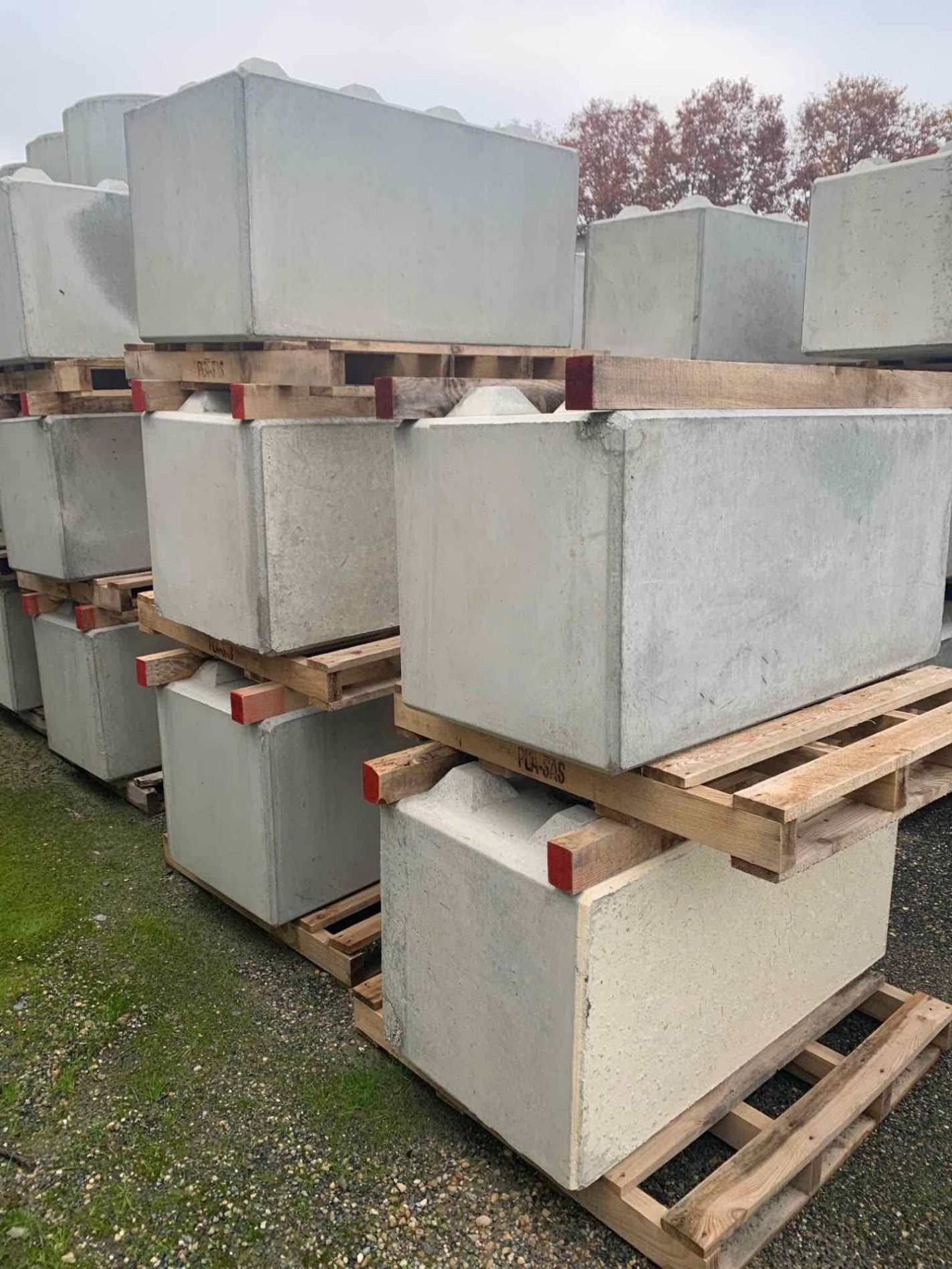

Local authorities and managers of sensitive sites: secure your spaces easily with our anti-ram bollards and anti-intrusion blocks.
Presentation
The Safely bollard is able to anchor in the ground in case of shock thanks to the claws located under the bollard.
The impact of the vehicle rotates the anti-vehicle ram by applying pressure on the claws,
thus the geometrical shape in "Shark Maw" forces the vehicles to be embedded.
ABOUT THE SAFELY TERMINAL
Presentation of URBAN CONCEPT Company
The company URBAN-CONCEPT, directed by Christian GUALTIERI with 30 years of experience in industrial concrete and especially urban furniture for communities (in partnership with two major industrial groups, French and
German). It is quite naturally that in 2016 he designs, develops and markets a safety device, anti-vehicle ram, the SAFELY bollard. Then the company files a patent at the INPI, National Institute of Industrial Property on the anchoring system in the ground, a unique device in Europe.
TECHNICAL EFFICIENCY OF THE DEFENSE BOLLARD
The Safely kiosk is capable of stopping a 1.1 tonne light vehicle over 2 meters.
The Safely Bollard can be chained and arranged in multiple rows to increase its effectiveness.
TECHNICAL DOCUMENTS
"BORNE SAFELY" TECHNICAL DEFINITION
L.2000 x W.1200 x Ht.1000 mm - 2500 Kg
BETON: B.P.S. C35 / 45 XF1 (gray)
STEEL: FeE500 (estimated weight = 99 Kg)
FINISH: RAW LIGHT OF DEMOULAGE (top) and TALOCHEE (below)
HANDLING: 2 LIFTING CLOSES 2 t 500 (top) or FORKLIFT (under)
INSERTS: 4 M20 SOCKETS (on the sides)
CLAMPS: 14 HA32 45 ° CUTTERS (finishing: hot-dip galvanized) - REINFORCING LIGATURES (not welded
COMMERCIAL DOCUMENTATION AND TECHNICAL DOCUMENTATION
Commercial brochure of the SAFELY terminal
Find the technical documentation in Pdf format
SAFELY BOLLARD
ANGLE SAFELY BOLLARD
FORMWORK
3D BOLLARD FORMWORK
FRAMEWORK FORMWORK
Request a Personalized Study
and Request a Quote
