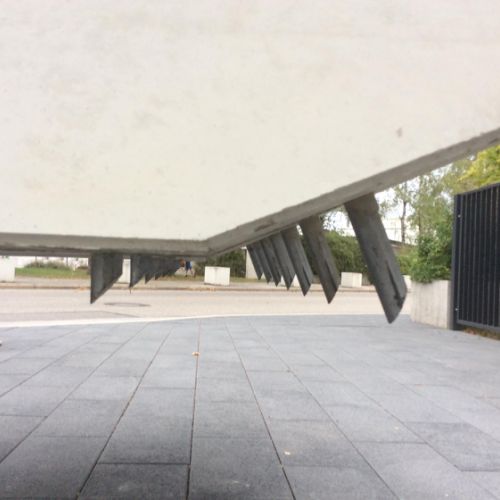

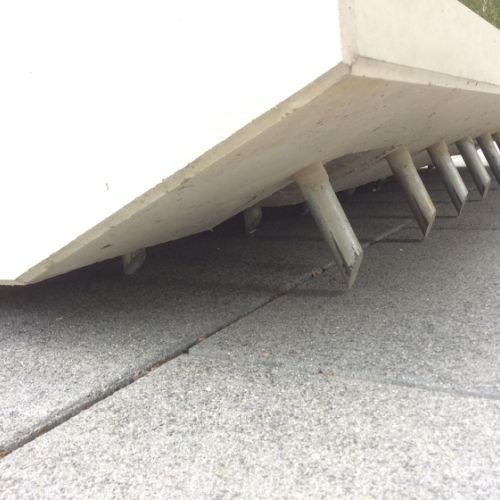

The Safely bollard is able to anchor in the ground in case of shock thanks to the claws located under the bollard.
The impact of the vehicle rotates the anti-vehicle ram by applying pressure on the claws,
thus the geometrical shape in "Shark Maw" forces the vehicles to be embedded.

TECHNICAL EFFICIENCY OF THE DEFENSE BOLLARD

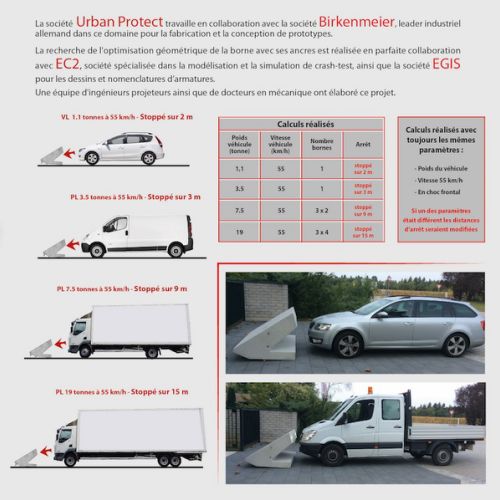

The Safely kiosk is capable of stopping a 1.1 tonne light vehicle over 2 meters.

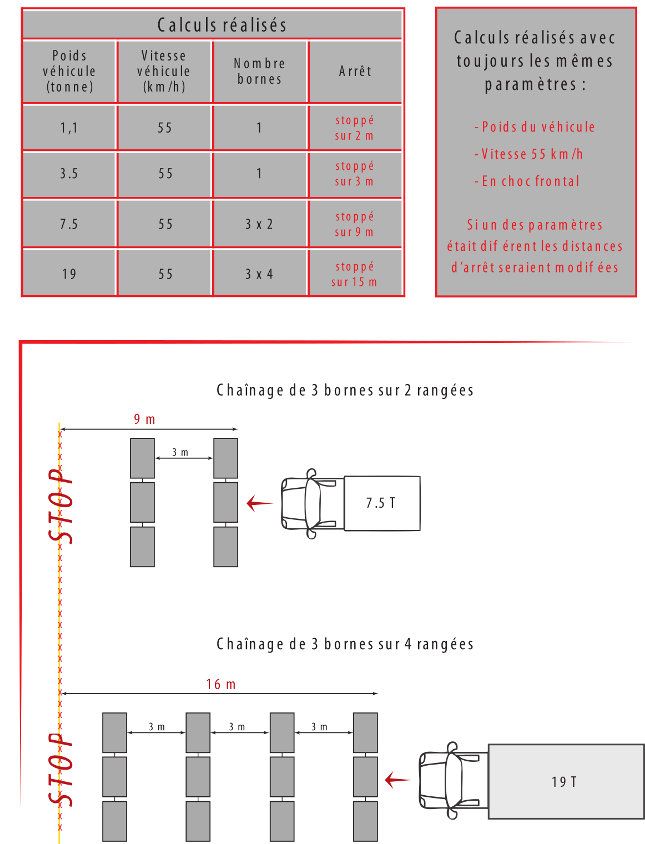

The Safely Bollard can be chained and arranged in multiple rows to increase its effectiveness.

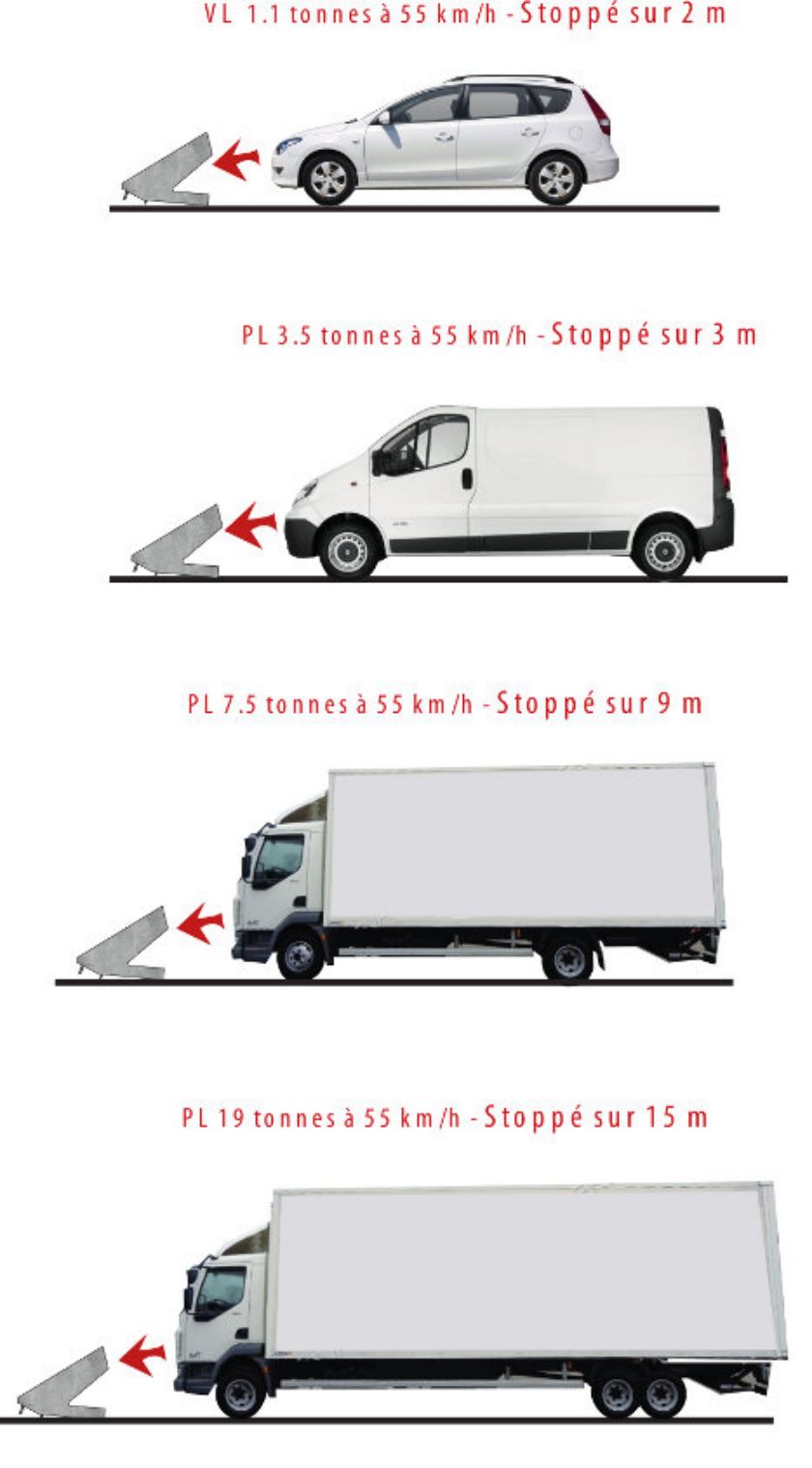

Effective protection on vehicles from 1.1 tonnes to 19 tonnes

TECHNICAL DESIGN

Technical presentation of the SAFELY terminal
The first idea July 2016
Research, study and design 1 year of work
Patent filing August 2017

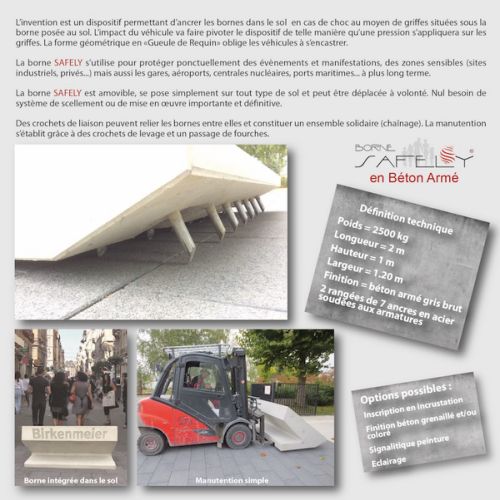

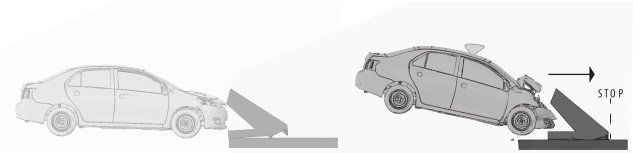

The Safely bollard is anchored in the ground in the event of impact thanks to the claws located under the bollard. The impact of the vehicle rotates the anti-ram terminal by applying pressure on the claws, and the geometric shape "Shark Maw" forces the vehicles to embed themselves.

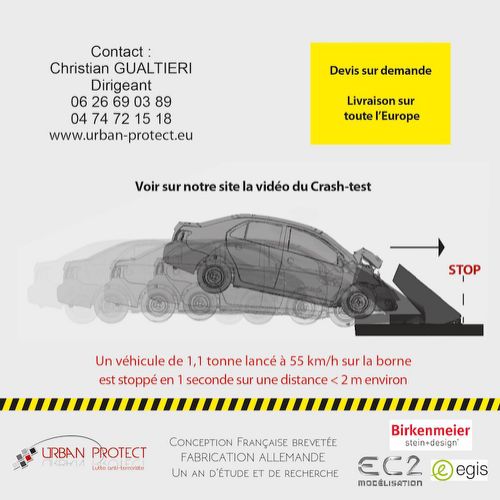

The terminal absorbs kinetic energy and the vehicle is stopped for about 2 m
- max speed of 3.8 m / s (14 km / hm),
- Stop in less than 1 '' thanks to the weight + friction + anchoring claws.
The SAFELY anti intrusion terminal is removable: it is simply installed on any type of ground and can be moved at will. No need for a sealing system or important implementation. It can also be integrated into the soil if needed.
Connecting hooks can connect the terminals to each other, so as to form an integral assembly (chaining)
The anti-vehicle bollard can be equipped with an optional bench seat and becomes an element of street furniture, much more discreet in the landscape, but still effective.

TECHNICAL DOCUMENTS

"BORNE SAFELY" TECHNICAL DEFINITION

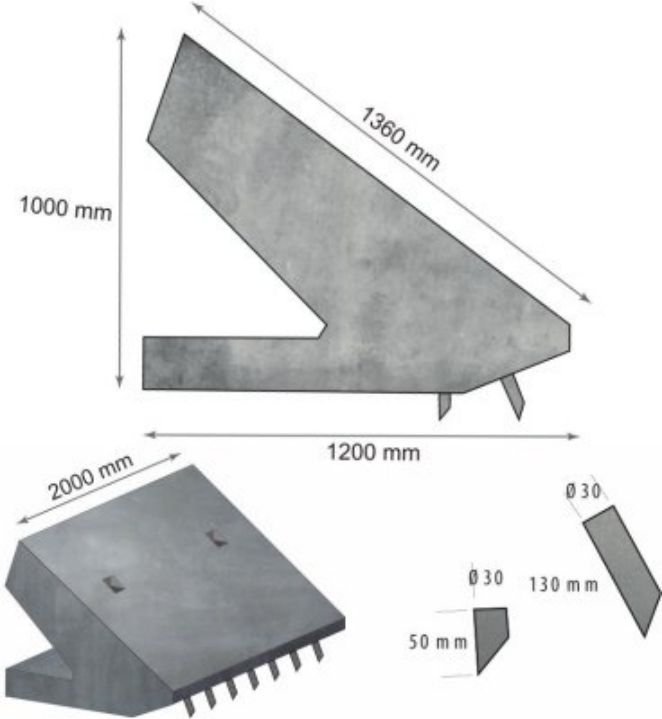

L.2000 x W.1200 x Ht.1000 mm - 2500 Kg
BETON: B.P.S. C35 / 45 XF1 (gray)
STEEL: FeE500 (estimated weight = 99 Kg)
FINISH: RAW LIGHT OF DEMOULAGE (top) and TALOCHEE (below)

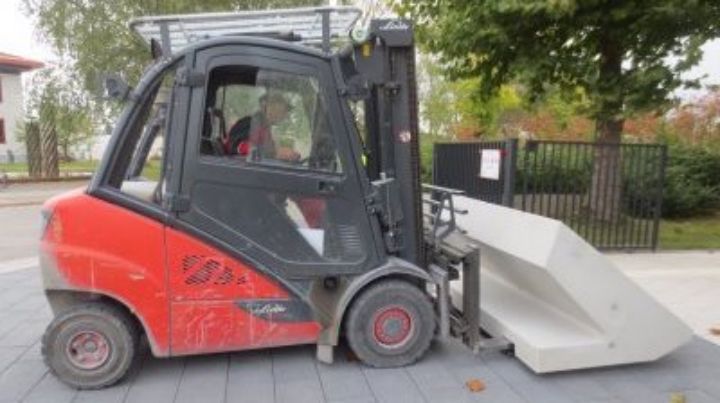

HANDLING: 2 LIFTING CLOSES 2 t 500 (top) or FORKLIFT (under)
INSERTS: 4 M20 SOCKETS (on the sides)

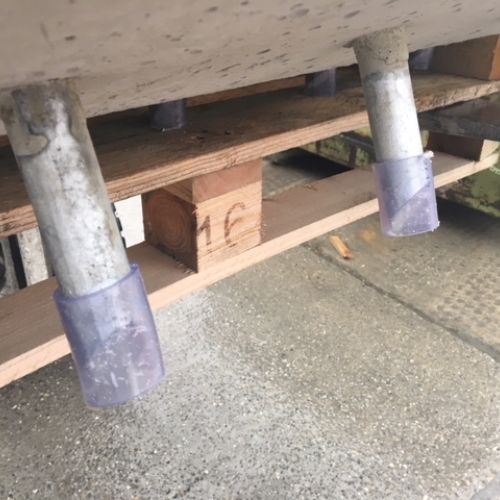

CLAMPS: 14 HA32 45 ° CUTTERS (finishing: hot-dip galvanized) - REINFORCING LIGATURES (not welded

COMMERCIAL DOCUMENTATION AND TECHNICAL DOCUMENTATION

Commercial brochure of the SAFELY terminal
Find the technical documentation in Pdf format
SAFELY BOLLARD
ANGLE SAFELY BOLLARD
FORMWORK
3D BOLLARD FORMWORK

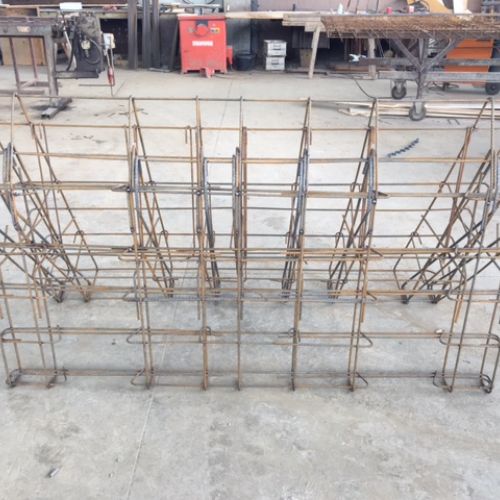

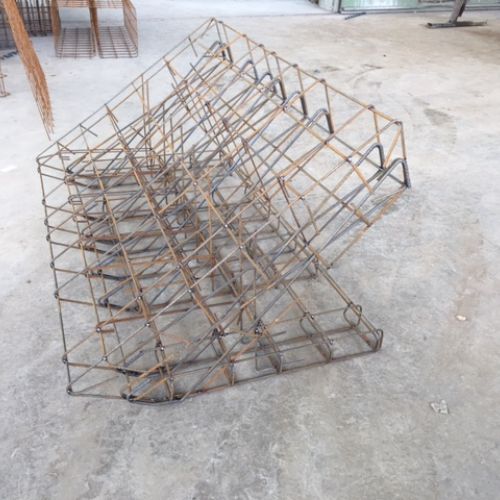

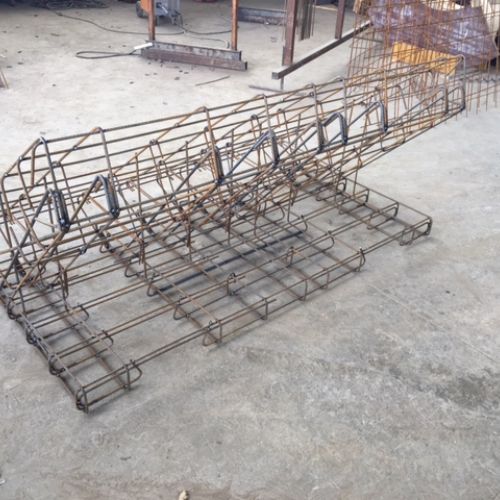

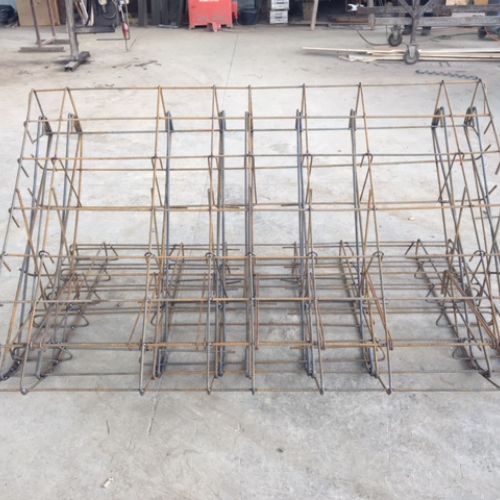

FRAMEWORK FORMWORK

Urban Concept - PATENT

Long is the road from the idea in 08/18/2017 to get the patent 10/23/2020. Today URBAN CONCEPT is the only company to offer the SAFELY anti-ram vehicle bollard on the market with a patented anchoring device without sealing or complicated installation.
The ram anti-vehicle block as defined by the INPI in the patent is a protective bollard forming street furniture with ground attachment points.
